Roman Column MOLDING SILICONE RUBBER DESCRIPTION：　

ZHUOERWEI RTV  is liquid rubber(condensation cure rtv, or tin cure silicone) mainly used for silicone plaster molds,

with the advantages of good tensile strength, high tear strength, high temperature resistance,

excellent chemical resistance, high duplication times, long-term stability, high durability,

Roman Column MOLDING SILICONE RUBBER DATASHEET:

Note: Above technical datasheet of two parts silicone rubber it's adjustable according to customer's requirements.

Roman Column MOLDING SILICONE RUBBER MOLDING INSTRUCTION:

• For products size (within 20cm), with details designs, soft silicone is suitable, such as 10-20 shore A.

• For products size (20cm-80cm), with intricate designs, 20-25 shore A is suitable. with simple designs, 25-30 shore A is suitable.

• For products size (80cm-150cm), with intricate designs, 25 shore A is suitable. with simple designs, 30-35 shore A is suitable.

• For products size (more than 150cm), with details designs, 25-28 shore a A is suitable. with simple designs, 35-40 shore A is suitable.




The proportions and reactions of the curing agent and the silicone are listed in the following:

　　1. Curing agent 1% added, the silicone can still be operated within 50 minutes and can be demoulded after 6-8 hours.

　　2. Curing agent 2% added, the silicone can still be operated within 30 minutes and can be demoulded after 2-3 hours.

　　3. Curing agent 3% added, the silicone can still be operated within 20 minutes and can be demoulded after 1.5-2 hours.

　　4. Curing agent 4% added, the silicone can still be operated within 15 minutes and can be demoulded after 1 -1.5 hours.

Roman Column MOLDING SILICONE RUBBER PACKAGE:

25KG/drum vacuum packing for part A +1kg/ bottle catalyst for part B

200KG/drum packing for part A +1kg/ bottle catalyst for part B

Note: 1kg/jar, 5kgs/drum, 20kgs/drum, 25kgs/drum, 200kgs/drum and vacuum package is available.

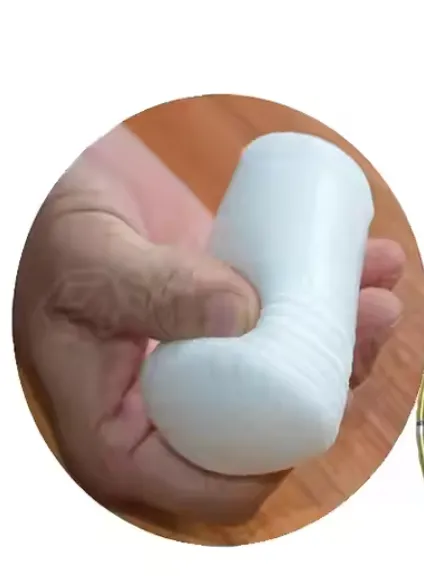

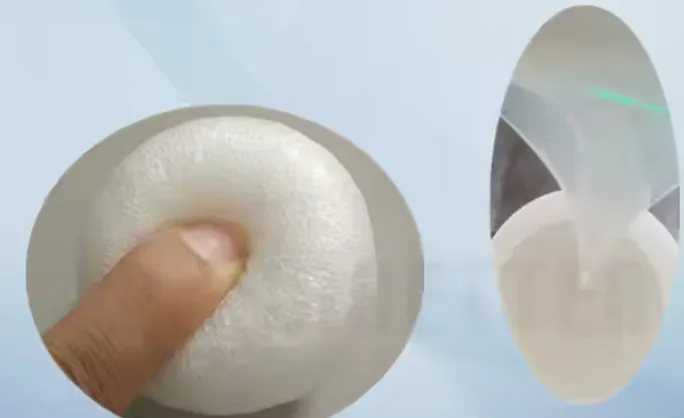

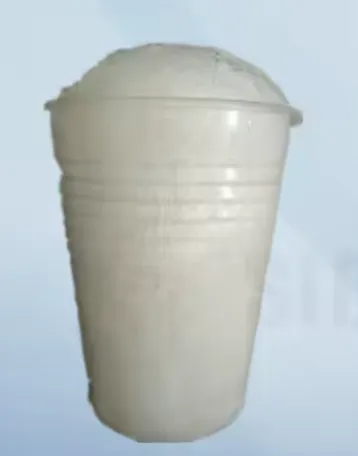

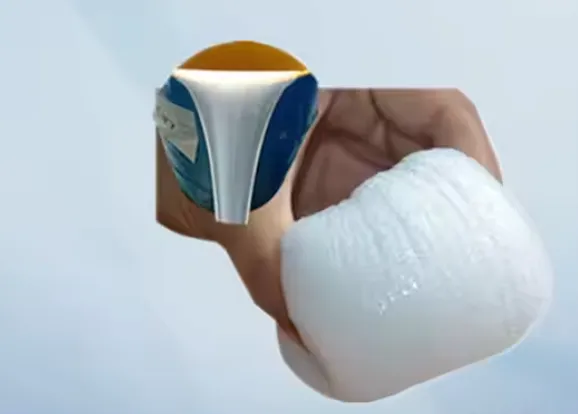

Foam silicone rubber Application:

FOAM Silicone FM 101 is great for silicone foam products, such as gaskets, sheets, high temperature tubes for autoclaves, fire-stops, surfactants, filling materials, making foam filled applications, padding/seat cushioning, orthopedics and vibration dampening, etc.

Operation Method:
By pouring operation method. Pouring into a mold or over other surfaces.

• Mixing ration: 1:1 for easy mixing ration

• Fast curing and de-molding

• Foam coefficient is 3 to 5 times available

• No shrinking on curing

• Excellent resistance to weather, temperature, aging, acid and aging-proofing.

• High resistance to high temperature and aging (resist -60℃ to 250℃)

Notes: The data are based on the operation under room temperature of 25 ℃.
